Overcurrent Relay (OCR) in Circuit Breakers
1. Understanding the Basics of Overcurrent Protection
Ever tripped a circuit breaker and wondered what really happened behind that little plastic switch? Well, one key player in keeping your electrical system safe is the overcurrent relay, or OCR. Think of it as the watchful guardian of your circuits, always on the lookout for trouble. When things get too hot (electrically speaking!), the OCR jumps into action.
So, what exactly is an OCR? In simple terms, it's a protective device that senses excessive current flowing through a circuit. When the current exceeds a pre-set limit, the OCR sends a signal to the circuit breaker, telling it to open and cut off the power. This prevents damage to your appliances, wiring, and, most importantly, keeps you safe from electrical hazards. Imagine it like a tiny, tireless bouncer at an exclusive electrical party, making sure no unruly currents crash the event.
Why is this so important? Overcurrents can occur for several reasons. A short circuit, where electricity takes an unintended shortcut, is a common culprit. Overloads, where you're trying to draw more power than the circuit can handle (think plugging in too many high-wattage appliances into one outlet), are another. Without an OCR and a circuit breaker to step in, these overcurrents could lead to overheating, fires, and a whole host of electrical nightmares. Nobody wants that!
The beauty of an OCR lies in its ability to detect these problems quickly and reliably. It's not just about preventing catastrophic failures; it's also about extending the lifespan of your electrical equipment by protecting it from the damaging effects of sustained overcurrents. In essence, the OCR is a vital component of any robust electrical protection system, ensuring the safe and efficient operation of your home or business.

How Overcurrent Relays Actually Work (Without Getting Too Technical)
2. Delving into the Inner Workings of OCRs
Now, let's peek under the hood and see how these overcurrent relays actually do their job. While the specific mechanisms can vary depending on the type of OCR, the fundamental principle remains the same: sensing current and tripping the circuit breaker when it exceeds a setpoint.
One common type of OCR uses an electromagnetic coil. When current flows through the coil, it creates a magnetic field. If the current is within the normal range, the magnetic field is weak and nothing happens. However, when an overcurrent occurs, the magnetic field becomes strong enough to attract a mechanical armature. This armature, in turn, triggers a switch that sends a trip signal to the circuit breaker. It's a bit like a tiny magnetic muscle flexing when it senses danger.
Another type of OCR uses a solid-state circuit. These relays rely on electronic components like transistors and microcontrollers to sense the current and generate the trip signal. Solid-state OCRs are often more accurate and reliable than their electromagnetic counterparts, and they can offer more sophisticated features like adjustable time delays and multiple trip settings. Think of them as the smart, technologically advanced version of the overcurrent relay.
Regardless of the specific technology used, all OCRs share a common goal: to quickly and accurately detect overcurrents and initiate the tripping of the circuit breaker. They are designed to be highly reliable and robust, capable of operating in a wide range of environmental conditions. After all, they're on the front lines of electrical safety!

Types of Overcurrent Relays
3. Exploring the Variety of OCR Options
Just like there are different types of cars to suit different needs, there are also different types of overcurrent relays designed for various applications. Understanding the different types can help you choose the right OCR for your specific electrical protection requirements.
Instantaneous Overcurrent Relays: These are the speed demons of the OCR world. They trip almost instantaneously when an overcurrent is detected, typically within a few milliseconds. They're ideal for protecting against severe faults like short circuits, where immediate action is crucial to prevent damage. Think of them as the lightning-fast responders, reacting instantly to danger.
Time-Delay Overcurrent Relays: Unlike instantaneous relays, time-delay OCRs allow the overcurrent to persist for a short period before tripping. This is useful for coordinating protection between different circuit breakers in a system. For example, a downstream breaker might be set to trip faster than an upstream breaker, allowing it to clear a fault without unnecessarily shutting down the entire system. They're like the strategic planners, allowing for coordinated action.
Inverse Time Overcurrent Relays: These relays have a tripping time that is inversely proportional to the magnitude of the overcurrent. This means that the higher the overcurrent, the faster the relay will trip. This characteristic is particularly useful for protecting motors and other equipment that can tolerate short-term overloads. They're the adaptive responders, adjusting their response based on the severity of the situation.Each type of OCR has its own strengths and weaknesses, and the best choice will depend on the specific application and the overall design of the electrical protection system. Consulting with a qualified electrical engineer is always a good idea to ensure that you're using the right OCR for the job.

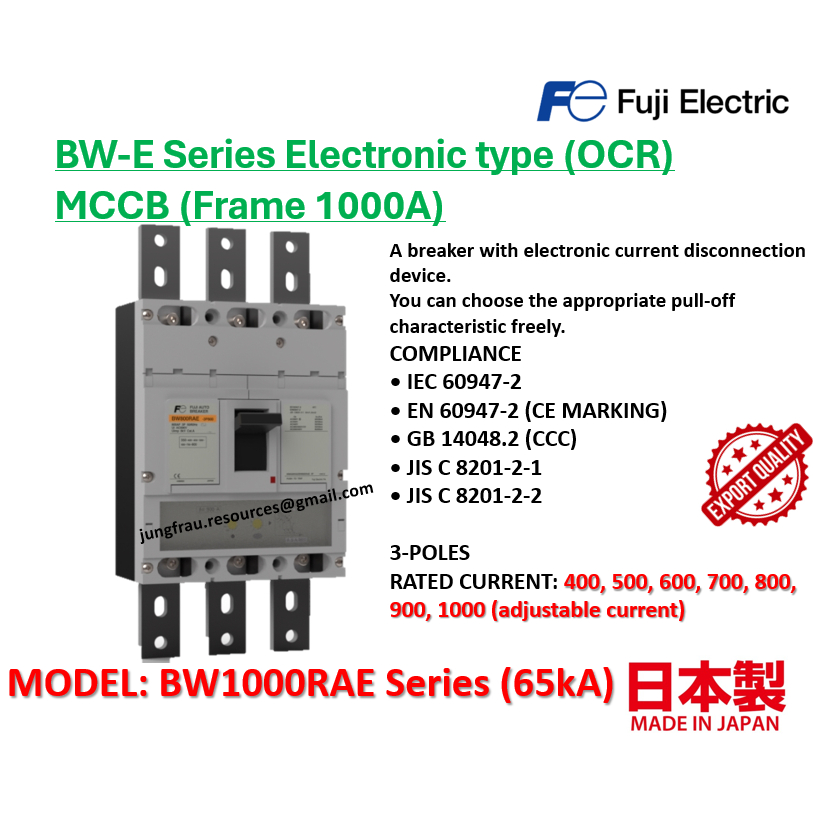

FUJI ELECTRIC (MCCB) Moulded Case Circuit Breaker 3 Pole (BW1000RAE
Why Proper OCR Settings are Crucial for Safety and Efficiency
4. The Importance of Getting the Settings Right
Having an overcurrent relay is only half the battle. Setting it up correctly is just as important, if not more so. Improperly set OCRs can lead to a variety of problems, from nuisance tripping to inadequate protection, ultimately compromising the safety and efficiency of your electrical system.
If the OCR is set too sensitively, it may trip unnecessarily even for minor overcurrents. This can disrupt operations, cause downtime, and be a general pain in the neck. Imagine your circuit breaker constantly tripping every time you turn on your microwave that's a sign of an OCR that's too trigger-happy.
On the other hand, if the OCR is set too high, it may not trip quickly enough to protect against damaging overcurrents. This can lead to overheating, equipment damage, and even fires. Think of it like having a smoke detector that only goes off when the entire house is already engulfed in flames not very helpful!
Proper OCR settings are typically determined through a process called coordination studies. These studies involve analyzing the characteristics of the electrical system, the loads being served, and the capabilities of the protective devices. The goal is to ensure that the OCRs are set to trip quickly enough to protect against faults, but not so quickly that they cause nuisance tripping. It's a delicate balancing act that requires expertise and careful consideration.

OCR Maintenance and Testing
5. Ensuring Long-Term Reliability of Your Overcurrent Relays
Like any other piece of equipment, overcurrent relays require regular maintenance and testing to ensure that they're functioning correctly and reliably. Neglecting maintenance can lead to undetected problems that could compromise the performance of the OCR when it's needed most.
Routine maintenance typically involves visual inspections, cleaning, and testing of the OCR's operating characteristics. Visual inspections can help identify any signs of damage or deterioration, such as cracked casings, loose connections, or corrosion. Cleaning helps remove dust and debris that can interfere with the OCR's operation. And testing verifies that the OCR is tripping within its specified parameters.
Testing is a crucial part of OCR maintenance. It typically involves injecting current into the OCR and measuring the time it takes for it to trip. The results are then compared to the OCR's published specifications to ensure that it's performing as expected. There are specialized test equipment available for performing these tests, and it's often best to have them carried out by a qualified technician.
The frequency of OCR maintenance and testing will depend on the application and the environmental conditions. In critical applications, such as those in hospitals or industrial facilities, more frequent maintenance may be necessary. A well-maintained OCR is a reliable OCR, providing peace of mind and ensuring the long-term safety and efficiency of your electrical system. Think of it as giving your electrical guardian a regular checkup to keep it in top shape.

Frequently Asked Questions (FAQs) About Overcurrent Relays
6. Your Burning Questions Answered
Let's tackle some of the common questions people have about overcurrent relays.
Q: How do I know if my OCR is bad?
A: A malfunctioning OCR can be tricky to diagnose without specialized equipment. Signs could include frequent nuisance tripping, failure to trip during a known overcurrent, or visible damage to the relay itself. If you suspect a problem, it's best to call a qualified electrician for testing.
Q: Can I replace an OCR myself?
A: Unless you are a qualified electrician with experience working with electrical systems, replacing an OCR yourself is strongly discouraged. Electrical work can be dangerous, and improper installation can lead to serious injury or property damage. Always leave it to the professionals!
Q: Are OCRs only for industrial applications?
A: While OCRs are commonly found in industrial and commercial settings, the basic principle of overcurrent protection applies to residential circuits as well. Circuit breakers in your home act as a form of overcurrent protection, though they may not be as sophisticated as the OCRs used in larger systems.
Q: What is the difference between an OCR and a fuse?
A: Both OCRs and fuses protect against overcurrents, but they work differently. A fuse is a one-time use device that melts and breaks the circuit when an overcurrent occurs. An OCR, on the other hand, is a reusable device that trips a circuit breaker and can be reset after the fault is cleared. OCRs also often offer more advanced features like adjustable settings and time delays.
