Understanding RCBOs

1. RCBO Basics

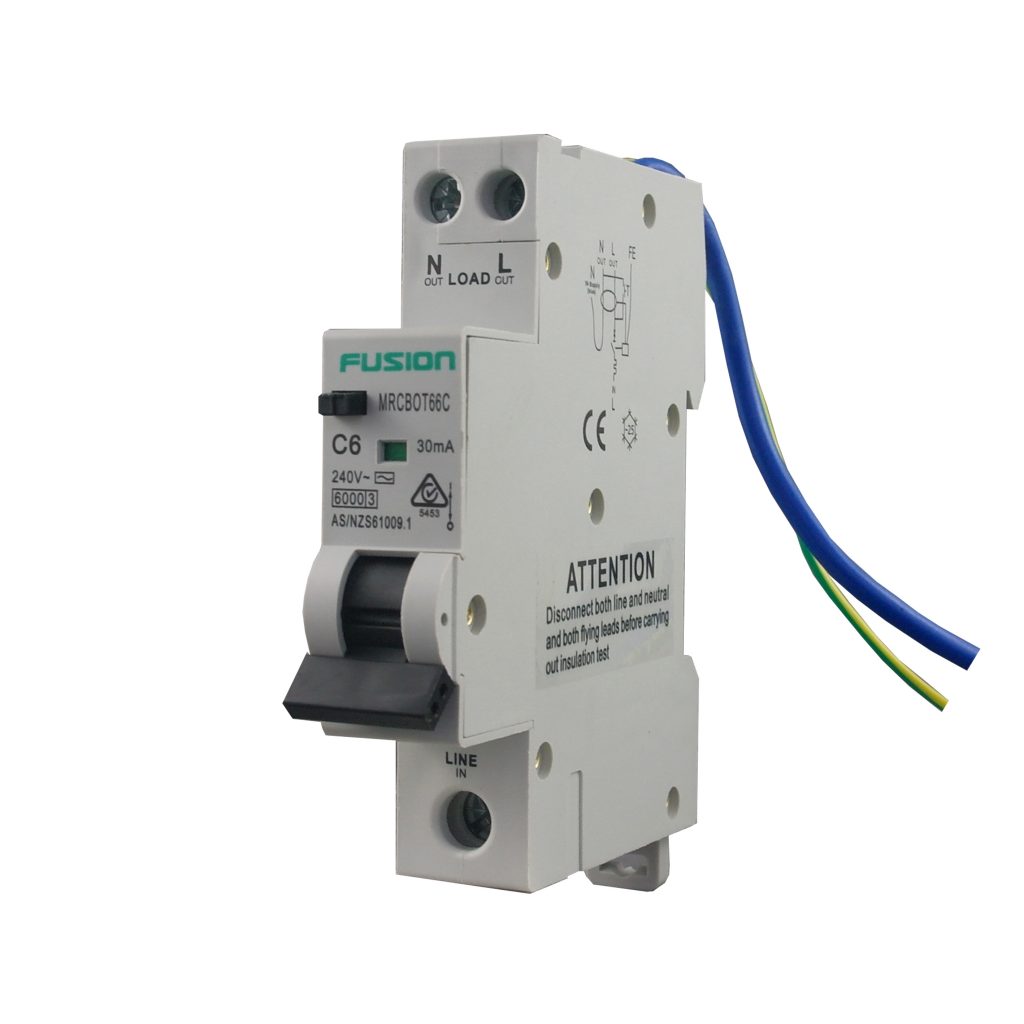

So, you're wondering about RCBOs and whether they absolutely need that neutral wire. Let's break it down. An RCBO, or Residual Current Circuit Breaker with Overcurrent protection, is basically a super-smart circuit breaker. It not only protects against overloads (too much current being drawn) and short circuits but also against earth leakage (current escaping where it shouldn't be). Think of it as your electrical system's personal bodyguard, always on the lookout for trouble.

Now, the "neutral" wire is usually blue, it's part of the standard wiring setup. It's the return path for the current back to the source. It's generally at or near zero volts relative to ground. But heres the burning question: does the RCBO need it to function at least for earth leakage detection?

Most of the time, yes, an RCBO requires a neutral connection to do its job properly, especially for detecting those pesky earth leakage faults. The way an RCBO works to detect earth leakage is by comparing the current flowing in the live (hot) wire with the current returning through the neutral wire. Any difference suggests current is leaking somewhere, like through you if you were unlucky enough to touch a faulty appliance. If there's a significant difference, the RCBO trips, cutting off the power and saving you from a potentially nasty shock. It's pretty dramatic, in a good way!

Without the neutral connection, the RCBO simply cannot do that calculation accurately and, crucially, it wont be able to trip correctly in the event of an earth leakage fault. Think of it like trying to balance your checkbook without knowing your deposits. You're missing a vital piece of the puzzle.

RCBO Functionality Without Neutral

2. Why Neutral is Usually Necessary

Imagine a tiny little electrical accountant living inside your RCBO. This accountant meticulously tracks every electron going in and coming out. If the numbers don't match, it flags a problem. The neutral wire is essential for this electron accounting to happen. If the current flowing through the live wire isn't equal to the current returning through the neutral wire, it indicates that some current is escaping, and that's a bad sign.

Now, the important bit, this comparison is ONLY possible with a neutral connection. The RCBO internally monitors the current flow in BOTH the live and neutral conductors. Any imbalance beyond a pre-set threshold triggers the tripping mechanism. This is how it protects you from electric shock.

Some situations might seem like the RCBO is working without a neutral, but that's probably an illusion, or another type of device altogether. Maybe its protecting from overcurrent only but not earth leakage, which defeats a major purpose of using an RCBO in the first place.

So, consider this: a faulty installation with missing neutral connection can cause incorrect behavior. Always make sure you are using a professional electrician!

Exceptions and Alternative Scenarios

3. When Things Get Tricky

Okay, so we've established that, generally speaking, RCBOs need a neutral. But what about those curveball situations? Are there any exceptions to the rule? Well, yes, sort of. There are specific types of RCBOs, often used in particular industrial or specialized applications, that might operate slightly differently. These usually have more sophisticated internal circuitry.

For instance, some specialized earth leakage relays or monitors might not directly require a neutral connection in the same way a standard RCBO does. Instead, they rely on other methods to detect earth faults, such as sensing the voltage between the circuit and earth. However, these are usually more complex and expensive solutions and not the typical RCBOs you'd find in your home.

It's also worth mentioning that in certain very specific scenarios, particularly with DC (direct current) systems, specialized devices can detect earth faults without relying on a traditional neutral return path. However, these scenarios are outside the scope of typical AC (alternating current) residential or commercial wiring, which is what we're primarily discussing here. It's a niche corner of electrical engineering, not something you'd usually encounter.

The critical point is, unless you're dealing with one of these very specialized systems, you should always assume that your RCBO needs a neutral connection to function correctly and safely. If you are in doubt, consult a professional electrician.

Safety Implications

4. The Danger of Bypassing Neutral Requirements

Seriously, messing around with electrical safety is not a game. If you're even thinking about bypassing the neutral connection on an RCBO because you believe you've found some sort of clever workaround online, stop right there. You're potentially putting yourself, your family, and your property at serious risk.

Remember, the neutral wire is there for a reason. It's part of a carefully designed safety system that protects you from electric shock and fire. By removing or bypassing it, you're essentially disabling a critical safety feature. It's like removing the airbags from your car because you think they're unnecessary. Sure, you might be okay, but what happens when things go wrong?

An improperly wired RCBO, especially one without a neutral connection when it's required, might not trip in the event of an earth fault. This means that if a fault occurs, current could leak through unintended paths, potentially causing a fire or giving someone a severe electric shock. The RCBO is intended to prevent such events; bypassing the neutral negates this protection.

If in doubt, always consult a qualified electrician. They're trained to understand these systems and ensure they're installed and functioning correctly. A small investment in professional help could save you a lot of trouble and potential danger down the road. Your safety is worth it.

Seeking Professional Advice

5. Don't DIY Electrical Work Unless You're Qualified

I can't stress this enough: if you're not a qualified electrician, please don't attempt to perform electrical work yourself. It's not like changing a lightbulb (though even that can be dangerous if done incorrectly). Electrical systems are complex and potentially lethal. You need proper training, tools, and understanding to work on them safely.

If you're unsure whether your RCBO is wired correctly, if you're experiencing electrical problems in your home, or if you're planning any electrical modifications or installations, the best thing you can do is call a licensed electrician. They can inspect your system, identify any potential hazards, and ensure that everything is up to code and safe.

Trying to save a few bucks by doing it yourself is simply not worth the risk. The cost of a professional electrician is a small price to pay for peace of mind and the assurance that your electrical system is functioning safely and reliably.

Remember, electricity is not something to be taken lightly. Respect it, understand it, and always seek professional help when you're in doubt. It's the smart, safe, and responsible thing to do. A professional will always know the right way to handle your RCBO issues, including understanding when a neutral is absolutely essential.

FAQ

6. Your Burning Questions Answered

Let's address some common questions about RCBOs and neutral wires:

Q: Will an RCBO trip if the neutral wire is disconnected?
A: It might, but not reliably and not necessarily for the right reasons. It might trip due to an overload, but it won't reliably detect earth leakage faults, which is a crucial part of its function.

Q: Can I use an RCBO without a neutral wire in a two-wire system?
A: No, unless it is specifically designed to do so (which is rare in residential applications). Standard RCBOs require a neutral wire to function correctly.

Q: My RCBO keeps tripping. Could it be a problem with the neutral wire?
A: Yes, a loose or faulty neutral connection can cause nuisance tripping. This is a common issue that an electrician can diagnose and fix.

Q: What happens if the neutral wire is connected to ground?
A: This creates a very dangerous situation, often causing the RCBO to trip immediately and potentially creating a shock hazard. Never connect the neutral wire to ground unless it's part of a specifically designed and approved grounding system.

Q: I think my neutral wire is missing from my RCBO. What should I do?
A: Stop! Do not attempt to fix it yourself. Call a qualified electrician immediately to investigate the issue and make the necessary repairs.
